AIR AMP Streaming Power Amplifier
FIIO
Your speakers. Your music. One remarkably simple system.
The FIIO AIR AMP brings streaming, digital conversion, and powerful amplification together in a compact component designed to make building a modern hi-fi system easy. Pair it with your favorite passive speakers and Roon, and you're ready to explore and enjoy your music without a complicated stack of equipment.

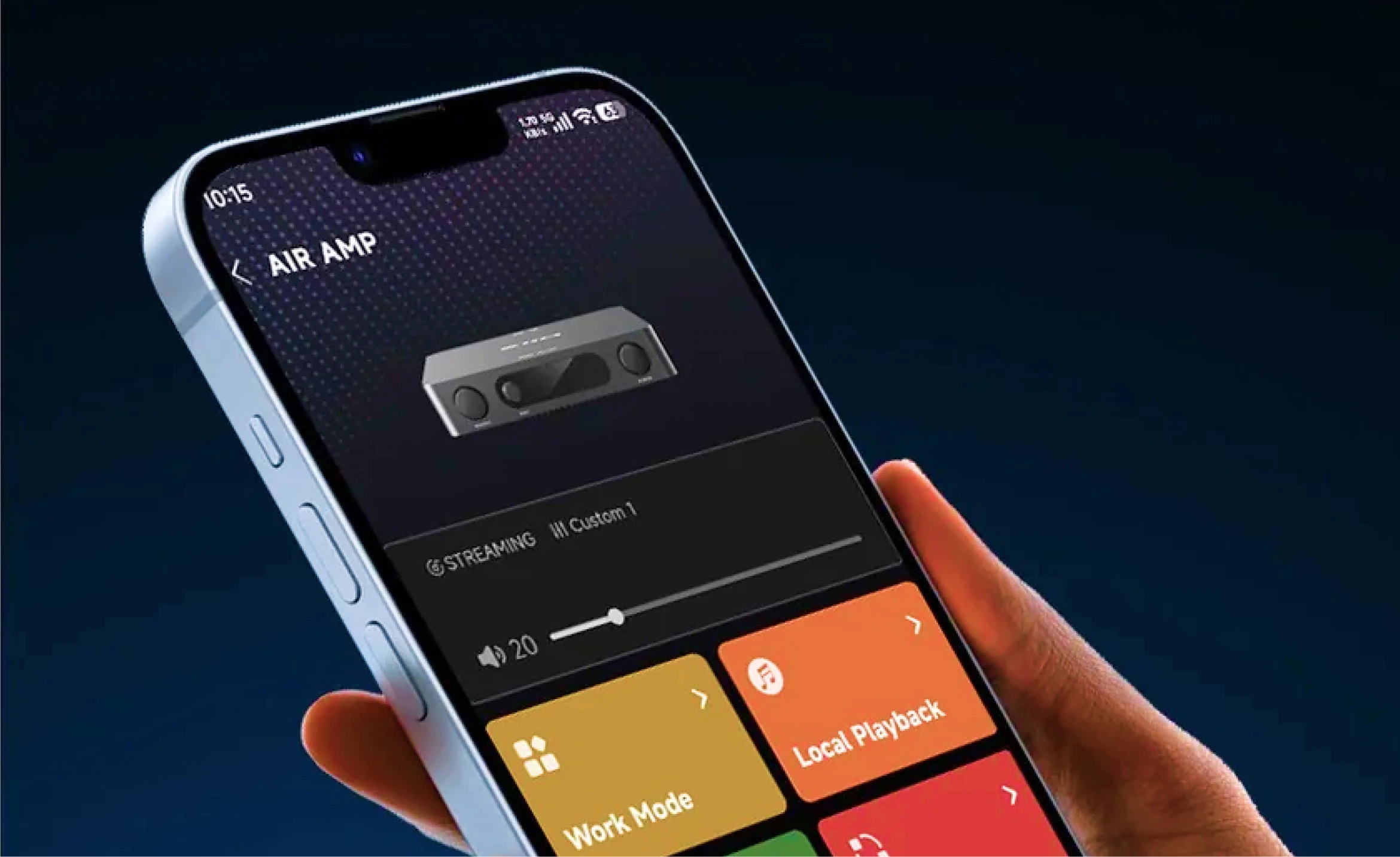

With Roon Ready connectivity built in, the AIR AMP becomes a natural extension of your Roon system. Browse your music from your phone, tablet, or computer, choose the AIR AMP, and start listening.
Your purchase includes a complimentary 3-month Roon subscription, so you can experience everything Roon brings to your music from the moment your new system is connected.
Big Sound with a Small Footprint
Don't let its size fool you. The AIR AMP delivers 120W per channel into 4 ohms with the included power supply, giving it the muscle to drive a wide range of passive speakers while taking up remarkably little space.
Streaming, DAC, and amplification are all built in, while flexible inputs and outputs make it easy to connect additional sources such as a TV. The AIR AMP also features a subwoofer out so you can easily add bass to your setup.
Rediscover Your Music with Roon
Roon turns your music collection into a world worth exploring. Bring your local library and streaming services together while exploring artist credits, recording details, recommendations, and connections that help you discover what to play next.
The AIR AMP takes care of getting music to your speakers. Roon makes finding that new music an experience you’ll want more of.
Just Add Speakers
The AIR AMP makes building a streaming hi-fi system refreshingly straightforward. Connect your speakers, connect to your network, and start listening. With three months of Roon included, everything you need for a smarter and more engaging music experience is right at your fingertips.
▼
▼
USEFUL INFO
- Product Specifications
Type | Streaming power amplifier
Audio inputs | 2 × USB Type-C DAC inputs
| Optical
| Coaxial
| RCA line input
Audio outputs | Amplified speaker output via 4 mm banana terminals
| 3.5 mm single-ended pre-out
| RCA subwoofer output
Audio formats | USB decoding: PCM up to 768 kHz / 32-bit; native DSD512
| Local playback: PCM up to 384 kHz / 32-bit; DSD256
| Streaming playback: PCM up to 384 kHz / 32-bit; DSD256
| Coaxial input: PCM up to 192 kHz / 24-bit; DSD64
| Optical input: PCM up to 96 kHz / 24-bit
| MQA full decoding
Connectivity | Roon Ready (requires Roon Server)
| AirPlay
| QPlay
| DLNA
Network | Gigabit Ethernet
| Dual-band Wi-Fi (2.4 GHz / 5 GHz)
Bluetooth | Bluetooth 5.2
| SBC and LDAC
Storage & Expansion | USB-A port for USB drives and portable hard drives
| Network-attached storage (NAS) playback
Amplified speaker output | With included 48V / 5A power supply, 4Ω: ≥120W + 120W
| With included 48V / 5A power supply, 8Ω: ≥90W + 90W
| With external 48V / 10A power supply, 4Ω: ≥190W + 190W
| With external 48V / 10A power supply, 8Ω: ≥100W + 100W
| With external 48V / 10A power supply and Line In (High), 4Ω: ≥235W + 235W
| With external 48V / 10A power supply and Line In (High), 8Ω: ≥150W + 150W
| Compatible with 4–8Ω passive speakers
Audio performance | Frequency response: 20 Hz–40 kHz
| Dynamic range: ≥110 dB, A-weighted
| Signal-to-noise ratio: ≥110 dB, A-weighted
| Noise floor: <80 μV, A-weighted
DAC | ESS ES9020Q
USB Interface | XMOS XU316
Amplifier | TI TPA3255
Processor | Ingenic X2000
Display | 1.1" LCD
Control interface | Front-panel controls
| Infrared remote control
| FiiO Control app
| Web-based control
Additional features | 10-band parametric EQ
| 10 built-in EQ presets and 10 custom EQ settings
| Independent bass and treble adjustment
| FiiO Link
| Local and OTA firmware updates
Power supply | DC 48V / 5A or higher
| 48V / 5A power adapter with 7909 DC connector included
Dimensions | 8.15" (W) × 7.40" (D) × 1.65" (H)
| (207 × 188 × 42 mm)
Weight | 2.05 lb (930 g)
Finish | Black or silver
- What's in the Box
FiiO AIR AMP
AC power cord
48V / 5A power adapter with 7909 DC connector
Infrared remote control
Quick start guide
Warranty card
- Manuals and Downloads
[@DOWNLOAD MANUAL~https://fiio-instruction.fiio.net/%E5%BF%AB%E9%80%9F%E5%85%A5%E9%97%A8/2026/AIR%20AMP.pdf]
-Warranty
Includes a 1-year limited manufacturer's warranty from the date of purchase.
